Model Number: MWE817 Narrow Bezel wall mount lcd display/Digital Touch Screen Display

Description

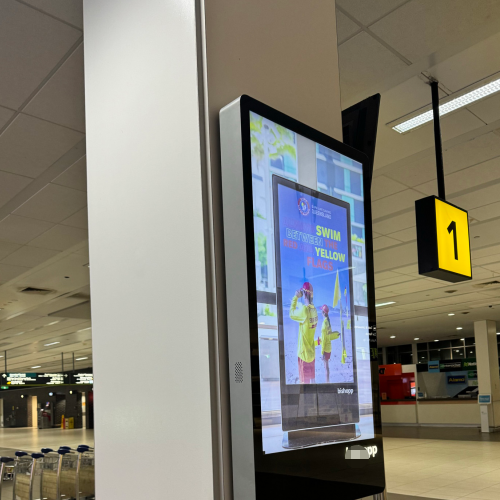

Narrow Bezel Wall Mount lcd display/ Digital Touch Screen Display / Wall mounted Touch Screen

Narrow Bezel Wall Mount lcd display / Wall mounted Touch Screen Product Description

Available Sizes:  32″ ~65″

MWE817 PC Version:

Screen:

Panel Brand: LG & OC
Panel size: 43″ (optional,32″ ~65″)
Display size: 930mm(H)×523mm(V)
Display ratio: 16:9
Resolution: 1080×1920
Viewing angle: 89/89/89/89 (Min.)(CR≥10)
Color: 16.7M
Backlight: LED
Brightness: 700 cd/m2 (optional)
Contrast ratio: 1300:1
OS System:

Main board: i5-3317U(optional)
RAM:4G, SSD:128G(optional)
Operation: Windows 7(optional,win8,win8.1,win10)
Connection to network: RJ45, 4G, WIFI (optional)
Touch Screen:

Touch screen: Infrared touch screen (touch foil, capacitive)
Touch ways: finger, touch pen
Touch dots: 10dots (optional,20dots,40dots)
Durability: More than 50 million touch
Power:

Power: 140W
Voltage: AC100-240V 50/60HZ
Stability: good
Instructions:

Interface: VGA/HDMI/USB
Working Temperature:

Temperature: 0°C ~ 50°C
Material:

Material: Aluminum alloy, tempered glass
Surface: Spraying, frosted aluminum
Size: Undetermined
Weight: Undetermined
Body:

Shell: Galvanized steel sheet. Thickness:1.0-1.5mm.
Color: Black, white, silver or customized colors
Packing: By carton with foam inside & wooden
Optional Functions:

Functions: Anti-dazzle, 3G/4G Capability
MWE817 Android Version:

Screen:

Same as PC version
OS System:

CPU:RK3288(optional)
RAM:2G,EMMC:8G(optional)
Operation: Android 4.2(optional Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2)
Connection to network: RJ45, 4G, WIFI (optional)
Touch Screen:

Same as PC version
Power:

Power: 120W
Voltage: AC100-240V 50/60HZ
Stability: good
Instructions:

Interface: HDMI/USB/SD
Working Temperature:

Temperature: 0°C ~ 50°C
Material:

Same as PC version
Body:

Same as PC version
Optional Functions:

Same as PC version
Please note that some specifications are still undetermined, such as size and weight. If you require further information, please contact us.
